Product Parameters

Brand	Tian Lishi
Product Name	VT Type Hand Chain Hoist
Hook Material	Manganese Steel Hook
Chain Length	1 meter/2 meters/3 meters and any length
Chain Material	G80 Manganese Steel Chain
Load Capacity	1-50T

Specification Parameters

Model		VT-1	VT-1.5	VT-2	VT-3	VT-5	VT-10	VT-20
Lifting Capacity		1T	1.5T	2T	3T	5T	10T	20T
Standard Lifting Height		2.5	2.5	2.5	3	3	3	3
Test Load		1.25T	2.0T	2.5T	4.0T	6.3T	12.5T	25T
Distance Between Two Hooks		270mm	368mm	444mm	486mm	616mm	700mm	1000mm
Hand Chain Pulling Force at Full Load		309N	343N	314N	343N	383N	392N	392N
Number of Lifting Chains		1	1	2	2	2	4	8
Diameter of Lifting Chain Steel		6	8	8	8	10	10	10

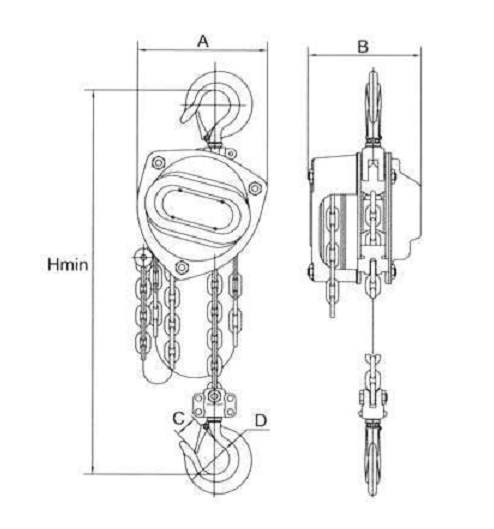

Main Dimensions	A	142mm	178mm	142mm	178mm	210mm	358mm	580mm
	B	122mm	138mm	122mm	139mm	162mm	162mm	189mm
	C	28mm	34mm	34mm	38mm	48mm	64mm	82mm
	D	142mm	178mm	142mm	178mm	210mm	210mm	210mm
Net Weight		10kg	16kg	14kg	24kg	36kg	68kg	155kg
Packing Gross Weight		13kg	20kg	17kg	28kg	45kg	83kg	193kg
Packing Size (cm)		302418	342920	332519	383020	453524	625028	704675
Weight increase for every 1 meter increase in lifting height		1.7kg	2.3kg	2.5kg	3.7kg	5.3kg	9.7kg	19.4kg

Honor

FAQ

Can I have my own custom product?

Yes. oem and odm can be provided, including design, logo, packaging, etc.

What is the minimum order quantity?

It depends on the product.

What are the terms of payment?

Wire transfer or letter of credit, Western Union, Alipay, etc.

When is the delivery time?

Inventory orders within 7-15 days, for oem and odm orders, the specific time depends on the actual situation.

Can I take samples for testing?

Yes, samples can be sent for testing before bulk ordering.

Do you have pre-shipment inspection procedures?

Yes, we always test the products before delivery.

Introduce

Shengshi Yale Company is a product design, manufacturing, maintenance and sales as one of the enterprises, specializing in the production of intelligent climbing frame, attached scaffold special high-strength electric hoist, manual hoist. Shengshi Yale company is the lifting hoist source manufacturers and for the same industry to provide processing services, do a good job of standard lifting equipment at the same time, but also according to customer needs special customized.
